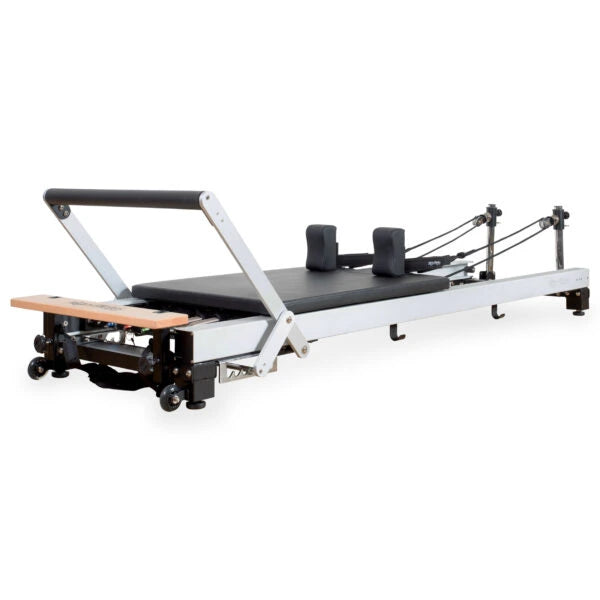

The Align-Pilates A8-Pro Pilates Reformer with Low Legs is a commercial-grade Pilates reformer designed for professional studios, private training spaces, and group class environments. This configuration includes the lowest available leg option at 28 cm, creating a lower working height while retaining the A8-Pro's oversized carriage, long travel, extensive adjustability, and quiet 8-wheel carriage system.
The A8-Pro features a spacious 67 cm-wide carriage, 113 cm of carriage travel, a patent-pending Rapid Change Spring Bar, Pro-Rope adjustment system, adjustable footbar and headrest, removable shoulder rests, and interchangeable leg heights. The low-leg configuration is particularly suited to studios with lower ceiling heights and can be stacked for more space-efficient storage.
🛠️ Product Overview
- Commercial A8-Pro Pilates Reformer with Low Legs
- 28 cm low legs included
- Extra-large 67 cm-wide carriage
- 113 cm carriage travel
- 8-wheel PU carriage system
- Patent-pending Rapid Change Spring Bar
- Oversized lockable footbar with 6 positions
- Adjustable 3-position headrest
- Removable and lockable shoulder rests
- Pro-Rope adjustment system for simultaneous rope adjustment
- Stainless-steel rope risers with multiple height positions
- Adjustable feet for leveling
- Align-Pilates Silent system with metal-free double-loop handles, ropes, and adjustable silent foot straps
- Patented silent pulley system
- 5 nickel-plated music wire springs in 3 strengths
- Stackable design for space-efficient storage
- Wheels for easier movement and storage
- Maximum user weight of 150 kg
Low 28 cm Leg Configuration
This version is supplied with the 28 cm low legs, the lowest of the three interchangeable A8-Pro leg options. The lower profile can be useful in studios with limited ceiling height and is also popular for group-class environments where reformers may need to be stacked when not in use.
Oversized Carriage & Long Travel
The A8-Pro provides a generous 67 cm-wide carriage with approximately 91 cm of carriage length. Its 113 cm travel length provides an extended movement range and can reduce the amount of adjustment required between exercises and users.
Rapid Change Spring Bar
The patent-pending Rapid Change Spring Bar allows spring bar adjustments using one hand and a single action. The carriage position can also be changed without removing the springs, helping make transitions between exercises more efficient.
Pro-Rope Adjustment System
The improved Pro-Rope adjustment system allows both ropes to be adjusted simultaneously while helping maintain consistent rope lengths. The adjustment controls are conveniently positioned near the headrest for quick and precise setup.
Adjustable Footbar & Headrest
The oversized footbar features 6 lockable positions, including a flat position. The headrest provides three adjustable positions, while the removable and lockable shoulder rests offer two width configurations through their offset shoulder pads.
Quiet 8-Wheel Carriage System
The A8-Pro uses an 8-wheel PU carriage system designed for smooth movement, handling of cross-loading forces, and reduced maintenance. The integrated Align-Pilates Silent system includes metal-free double-loop handles, adjustable silent foot straps, ropes, and patented silent pulleys for a quiet training experience.
Interchangeable Leg Heights
The A8-Pro platform is designed with interchangeable legs, allowing the reformer to be configured with 28 cm low legs, 42 cm standard legs, or 64 cm rehab legs. The legs can be changed when studio requirements or equipment placement changes.
Technical Specifications
| Product | A8-Pro Pilates Reformer with Low Legs |
| SKU | PAPREFORMERA8L |
| Brand | Align-Pilates |
| Dimensions | 263 cm L × 75 cm W × 28 cm H |
| Carriage Size | 91 cm L × 67 cm W |
| Carriage Travel | 113 cm |
| Low Leg Height | 28 cm |
| Alternative Leg Heights | 42 cm Standard / 64 cm Rehab |
| Carriage Wheels | 8 PU Wheels |
| Footbar | Oversized, 6 Lockable Positions |
| Headrest | 3 Adjustable Positions |
| Shoulder Rests | Removable and Lockable, 2 Width Options |
| Springs | 5 Nickel-Plated Music Wire Springs |
| Spring Configuration | 2 Light, 2 Medium, 1 Strong |
| Maximum User Weight | 150 kg |
| Weight | 75 kg |
| Testing | Independently tested to EN ISO 20957-1:2013 |
What's Included
- A8-Pro Pilates Reformer
- 28 cm Low Legs
- Adjustable Silent Foot Strap with fluffy cover
- Pair of Silent Double Loop Straps
- 5 nickel-plated music wire springs
- Integral standing platform
- Silent rope and pulley system
- Stainless-steel rope risers
Ideal For
- Professional Pilates studios
- Commercial fitness facilities
- Private Pilates training spaces
- Group Pilates classes
- Studios with lower ceiling heights
- Facilities requiring stackable reformers
- Studios with limited equipment storage space
- One-on-one Pilates instruction
- Small-group training environments
- Professional Pilates training facilities
The Align-Pilates A8-Pro Pilates Reformer with Low Legs combines a low-profile 28 cm frame with a spacious carriage, long travel, adjustable components, and a quiet 8-wheel carriage system. Its interchangeable leg design allows the reformer to be adapted to different height requirements in the future.
With its oversized carriage, Rapid Change Spring Bar, Pro-Rope adjustment system, adjustable footbar and headrest, removable shoulder rests, and Silent pulley system, the A8-Pro provides a versatile platform for professional Pilates environments while the low-leg configuration makes storage and studio space management more convenient.
