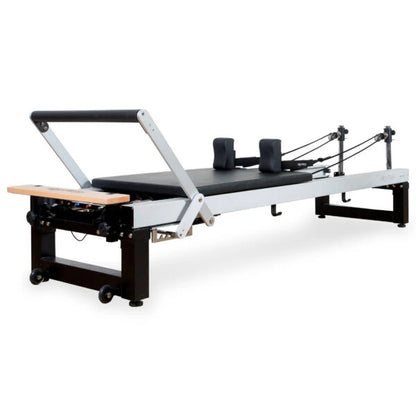

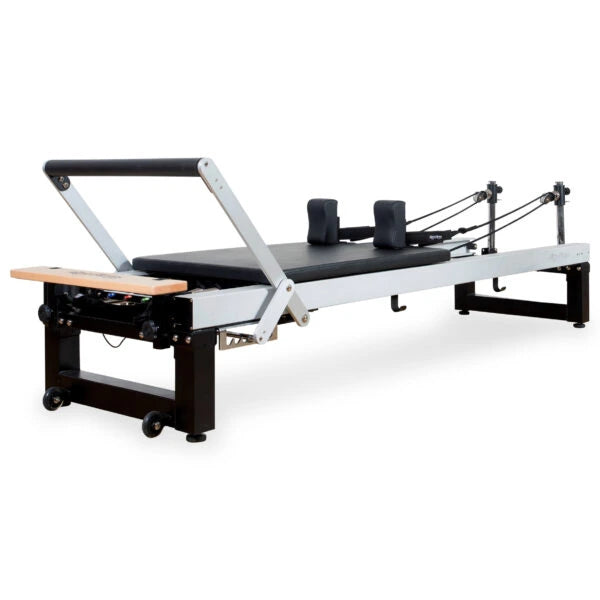

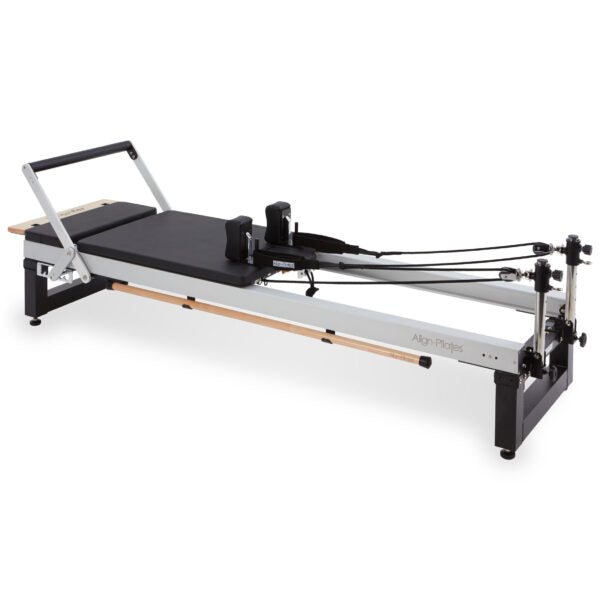

The Align-Pilates A8-Pro Pilates Reformer with Standard Legs is a commercial-grade Pilates reformer designed for professional studios, private training spaces, and demanding Pilates environments. It features an oversized carriage, 113 cm of carriage travel, an 8-wheel PU wheel system, extensive adjustability, and a quiet operating design.
The fourth-generation A8-Pro is built around a spacious carriage and a versatile platform that can accommodate different users and exercise configurations. The standard-leg version stands at 42 cm high and can be fitted with interchangeable leg options, allowing the A8-Pro platform to adapt as your training or studio requirements change.
🛠️ Product Overview
- Commercial-grade A8-Pro Pilates Reformer
- 42 cm standard legs included
- Extra-large 67 cm-wide carriage
- 113 cm carriage travel
- 8-wheel PU carriage system
- Patent-pending Rapid Change Spring Bar
- Oversized lockable footbar with 6 positions
- Adjustable 3-position headrest
- Removable and lockable shoulder rests
- Pro-Rope adjustment system for simultaneous rope adjustment
- Stainless-steel rope risers with multiple height positions
- Adjustable leveling feet
- Align-Pilates Silent system with metal-free double-loop handles and quiet pulleys
- Includes 5 nickel-plated music wire springs in 3 strengths
- Stackable and equipped with wheels for movement and storage
- Maximum user weight of 150 kg
Oversized Carriage for Greater Training Space
The A8-Pro features a generous 67 cm-wide carriage with approximately 91 cm of carriage length. The larger working surface provides additional room for different exercise positions and accommodates a broad range of users.
113 cm Long Carriage Travel
The A8-Pro provides 113 cm of carriage travel, giving users an extended range of movement while reducing the amount of adjustment required between exercises. The longer travel is particularly useful in a studio environment where multiple users may share the equipment.
Rapid Change Spring Bar
The patent-pending Rapid Change Spring Bar allows spring bar adjustments using one hand and a single action. The design also allows the carriage position to be changed without removing the springs, helping make transitions between exercises more efficient.
Pro-Rope Adjustment System
The improved Pro-Rope adjustment system allows both ropes to be adjusted simultaneously while maintaining consistent rope lengths. The adjustment controls are positioned near the headrest for convenient access during setup.
Adjustable Footbar & Headrest
The oversized footbar provides 6 lockable positions, including a flat position. The headrest features three adjustable positions, while the removable and lockable shoulder rests provide two width configurations through their offset shoulder pads.
Quiet 8-Wheel Carriage System
The A8-Pro uses an 8-wheel system with precision PU wheels designed for smooth carriage movement, reduced maintenance, and improved handling of cross-loading forces. The Align-Pilates Silent system also includes metal-free double-loop handles, adjustable silent foot straps, ropes, and patented silent pulleys.
Interchangeable Leg Heights
The A8-Pro is designed around interchangeable leg heights. The standard configuration included with this model is 42 cm, while compatible low and higher leg options provide additional setup flexibility. Align-Pilates lists three available heights of 28 cm, 42 cm, and 64 cm.
Technical Specifications
| Product | A8-Pro Pilates Reformer with Standard Legs |
| SKU | PAPREFORMERA8S |
| Brand | Align-Pilates |
| Dimensions | 263 cm L × 75 cm W × 42 cm H |
| Carriage Size | 91 cm L × 67 cm W |
| Carriage Travel | 113 cm |
| Standard Leg Height | 42 cm |
| Alternative Leg Heights | 28 cm Low Legs / 64 cm Rehab Legs |
| Carriage Wheels | 8 PU Wheels |
| Footbar | Oversized, 6 Lockable Positions |
| Headrest | 3 Adjustable Positions |
| Shoulder Rests | Removable and Lockable, 2 Width Options |
| Springs | 5 Nickel-Plated Music Wire Springs |
| Spring Configuration | 2 Light, 2 Medium, 1 Strong |
| Maximum User Weight | 150 kg |
| Weight | 75 kg |
| Testing | Independently tested to EN ISO 20957-1:2013 |
What's Included
- A8-Pro Pilates Reformer
- 42 cm Standard Legs
- Adjustable Silent Foot Strap with fluffy cover
- Pair of Silent Double Loop Straps
- 5 nickel-plated music wire springs
- Integral standing platform
- Silent rope and pulley system
- Stainless-steel rope risers
Ideal For
- Professional Pilates studios
- Commercial fitness facilities
- Private Pilates studios
- One-on-one Pilates instruction
- Small-group training environments
- Home Pilates studios requiring commercial-grade equipment
- Studios needing a large carriage platform
- Facilities that require extensive equipment adjustability
- Professional Pilates training and exercise environments
The Align-Pilates A8-Pro Pilates Reformer with Standard Legs combines a spacious carriage, long travel length, adjustable components, and a quiet 8-wheel carriage system in a professional reformer platform. Its standard 42 cm height provides a practical studio configuration while the interchangeable leg system allows additional flexibility in the future.
With its oversized carriage, Rapid Change Spring Bar, Pro-Rope adjustment system, adjustable footbar and headrest, removable shoulder rests, and Silent pulley system, the A8-Pro is designed for efficient setup and a wide range of Pilates exercises.
