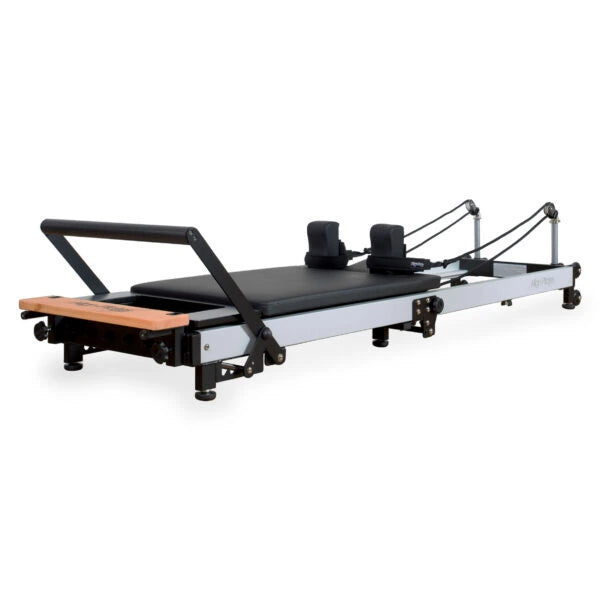

The Align-Pilates F3 Folding Pilates Reformer is a light-commercial reformer designed to deliver many of the ride and design characteristics of a full commercial Pilates machine while remaining easy to fold, move, and store. It is suited to home Pilates spaces, small studios, and multifunctional workout areas where permanent equipment setup is not practical.
The F3 uses precision aluminium runners and an innovative carriage design that keeps the wheels from crossing the folding joint during use. This provides smooth, uninterrupted carriage travel while allowing the reformer to fold into a compact, self-contained unit for storage.
🛠️ Product Overview
- Light Commercial Pilates Reformer with folding design
- Compact folding construction for convenient storage
- Precision aluminium runners with 8 PU wheels
- 97 cm carriage travel
- 89 cm x 58 cm carriage
- Four nickel-plated music wire springs
- Four-position standard footbar
- Fixed spring bar
- Threaded rope adjustment system
- Three-position adjustable headrest
- Fixed shoulder rests with two width options
- Adjustable feet for stable positioning
- Can be wheeled while folded or unfolded
- Can stand vertically when folded
- Maximum user weight of 120 kg
Innovative Folding Design
The F3 folds into a compact, self-contained machine in a matter of minutes. Its folding construction makes it easier to store when the reformer is not being used, making it particularly suitable for homes and spaces that serve multiple purposes.
Smooth Carriage Travel
The F3 features a specially designed carriage that does not cross the folding joint during operation. Combined with precision aluminium runners and eight PU wheels, this design provides smooth and controlled carriage movement across the full 97 cm travel distance.
Four-Spring Resistance System
The F3 uses four nickel-plated music wire springs instead of the five-spring configuration found on many Align-Pilates commercial reformers. The standard setup includes one Light, one Medium, and two Strong springs, providing multiple resistance combinations for different exercises.
Adjustable Footbar & Headrest
The standard-size footbar provides four positions, including the lowered position, allowing users to configure the reformer for different exercises. The three-position headrest provides additional adjustment for comfortable positioning on the carriage.
Threaded Rope Adjustment
The F3 uses a threaded rope adjustment system with removable rope risers. The rope risers provide three height positions, while the rope system offers five easy rope-length adjustments for different users and exercise setups.
8-Wheel Aluminium Runner System
The precision aluminium runners and eight PU wheels are designed to provide smooth, quiet and consistent carriage movement. The carriage design also helps prevent the wheels from crossing the folding joint during use.

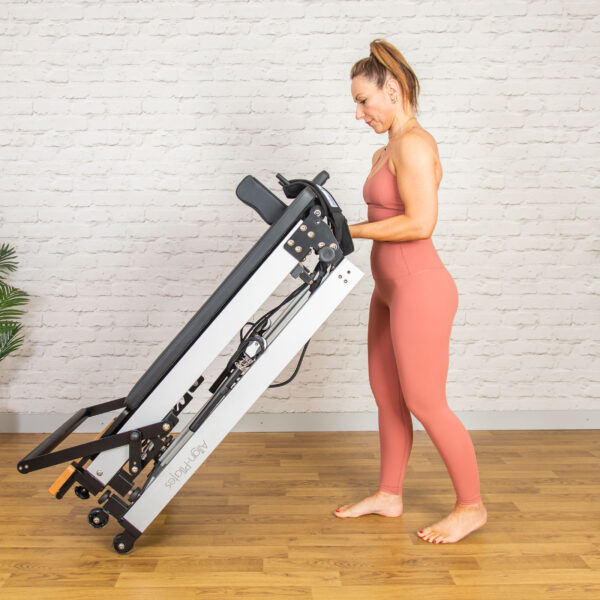

Easy Movement & Storage
When folded, the F3 becomes a compact unit that can be wheeled into a storage position. The reformer can also be wheeled while unfolded, making it easier to reposition within a home or studio.
Technical Specifications
| Brand | Align-Pilates |
| Model | F3 Folding Pilates Reformer |
| SKU | PAPREFORMERF3 |
| Usage | Light Commercial |
| Reformer Dimensions | 242 cm L x 66 cm W x 23 cm H |

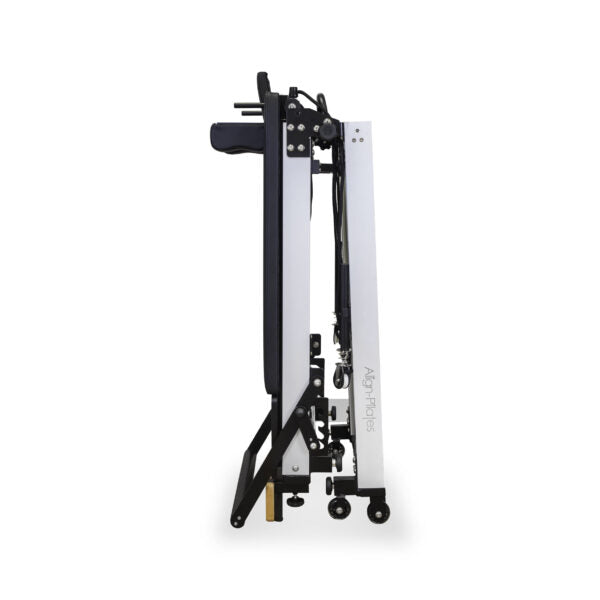

| Folded Dimensions | 143.5 cm H x 66 cm W x 49 cm D |
| Carriage Size | 89 cm L x 58 cm W |
| Carriage Height | 22 cm |
| Carriage Travel | 97 cm |
| Reformer Weight | 58 kg |
| Footbar | 4 positions, standard size |
| Spring Bar | Fixed |
| Springs | 4: 2 Strong, 1 Medium, 1 Light |
| Rope Adjustment | Threaded rope |
| Rope Risers | Painted, outside frame, 3 height positions |
| Headrest | 3 positions |
| Shoulder Rests | Fixed, two width options |
| Runners/Wheels | Precision aluminium / 8 PU wheels |
| Adjustable Feet | Yes |
| Maximum User Weight | 120 kg |
| Folding | Yes |
| Standing | Yes |
| Stacking | No |
| Leg Options | None |
What's Included
- F3 Folding Pilates Reformer
- Four nickel-plated music wire springs
- Standard-size four-position footbar
- Threaded rope adjustment system
- 3-position headrest
- Fixed shoulder rests with two width options
- Double-loop handles with metal-free silent connectors
- Adjustable feet
Ideal For
- Home Pilates spaces
- Small Pilates studios
- Light commercial Pilates facilities
- Multifunctional workout rooms
- Compact fitness spaces
- Users who need convenient equipment storage
- Pilates instructors working in smaller spaces
- Home users who want a folding reformer
The Align-Pilates F3 Folding Pilates Reformer combines a compact folding design with many of the features associated with studio-style Pilates equipment. Its 97 cm travel, aluminium runners, eight-wheel carriage, adjustable footbar and four-spring resistance system provide a versatile platform for regular Pilates training.
When space is limited, the F3 offers a practical solution without requiring a reformer to remain permanently set up. Its compact folded dimensions, integrated wheels and ability to stand when folded make it particularly suitable for homes and smaller studios where efficient use of space is important.
