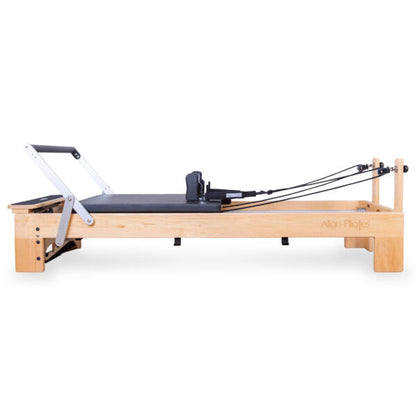

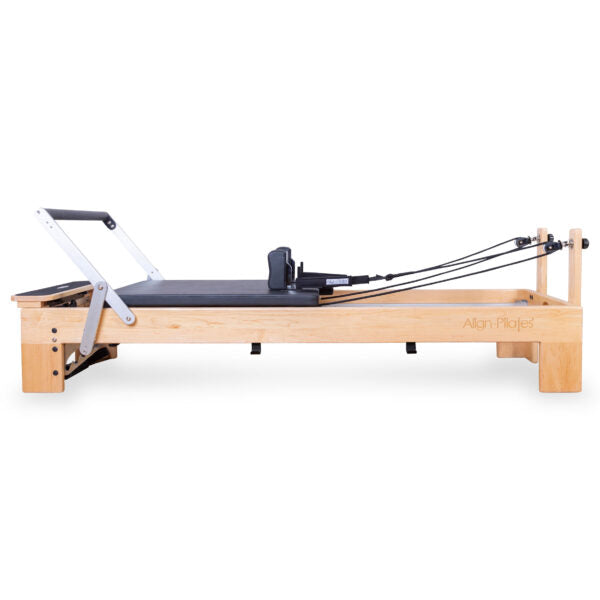

The Align-Pilates M8-Pro Maple Wood Pilates Reformer combines classical Pilates styling with contemporary adjustment systems and commercial-grade functionality. Crafted from durable North American maple, the M8-Pro features an oversized carriage, 104 cm of smooth and quiet travel, an 8-wheel carriage system, and extensive adjustment options for both studio and home use.
This package includes the Pro Sitting Box and Foot Strap, making it ready for a broader range of seated and supported Reformer exercises. The M8-Pro also features Align-Pilates' Rapid Change spring bar, combined T-Bar and Pro Rope adjustment system, removable shoulder rests, adjustable headrest, and a removable maple standing platform.
🛠️ Product Overview
- Premium North American solid maple Pilates Reformer
- Includes Pro Sitting Box and Foot Strap
- Oversized 93 cm x 66 cm carriage
- 104 cm of smooth and quiet carriage travel
- 8 PU wheel carriage system
- Patent-pending Rapid Change spring bar
- One-hand, single-action spring bar adjustment
- Combined T-Bar and Pro Rope adjustment system
- Four-position adjustable footbar, including flat position
- Three-position adjustable headrest
- Removable and lockable shoulder rests with two width options
- Five nickel-plated music wire springs in three resistance levels
- Removable maple standing platform
- Adjustable feet for stable positioning
- Silent system with metal-free double-loop handles, ropes and adjustable foot strap
- Patented silent pulley system
- Gondola Pole storage hooks underneath the runner
- Compatible with optional Jump Board, Half Cadillac, Mattress Converter and Platform Extender
- Maximum user weight of 150 kg
North American Maple Construction
The M8-Pro is constructed from solid North American maple, giving it a distinctive natural wood appearance that complements both traditional and contemporary Pilates studios. The wood frame combines classic visual styling with modern adjustment and carriage technology.
Oversized Carriage & 104 cm Travel
The M8-Pro features a generous 93 cm x 66 cm carriage designed to accommodate a broad range of body sizes. With 104 cm of smooth carriage travel, the Reformer provides ample room for a wide range of Pilates exercises.
Rapid Change Spring Bar
The patent-pending Rapid Change spring bar allows the spring bar to be repositioned with the springs attached using one hand and a single action. This makes resistance and carriage setup changes more efficient, particularly when transitioning between exercises or users.
Combined T-Bar & Pro Rope Adjustment
The M8-Pro uses a combined T-Bar and Pro Rope adjustment system that allows both ropes to remain at the same length while being adjusted together. This provides a convenient way to make precise rope-length changes during setup.
Adjustable Footbar & Headrest
The standard-size footbar features four lockable positions, including a flat position. The three-position adjustable headrest provides additional positioning flexibility for different exercises.
Removable & Adjustable Shoulder Rests
The M8-Pro features removable and lockable shoulder rests with off-centred shoulder pads. Two shoulder-width positions are available, allowing the carriage configuration to be adjusted for different users.
8-Wheel Silent Carriage System
The carriage runs on eight PU wheels and precision aluminium runners. Align-Pilates' Silent system includes metal-free double-loop handles, ropes, an adjustable silent foot strap and patented silent pulleys to help provide a smooth and quiet training experience.
Pro Sitting Box & Foot Strap Included
Unlike many Reformer packages, the M8-Pro bundle includes a Pro Sitting Box and Foot Strap. The sitting box expands the range of seated exercises that can be performed on the Reformer, while the foot strap provides additional support for selected movements.
Expandable Pilates Platform
The removable maple standing platform can be replaced with the optional upholstered Jump Board. The M8-Pro can also accept a Half Cadillac and can be configured with the optional Mattress Converter and Platform Extender for an expanded flat working surface.
Technical Specifications
| Brand | Align-Pilates |
| Model | M8-Pro Maple Wood Pilates Reformer with Sitting Box |
| SKU | PAPREFORMERM8B |
| Frame Material | North American solid maple |
| Dimensions | 254 cm L x 76 cm W x 43 cm H |
| Carriage Size | 93 cm L x 66 cm W |
| Carriage Travel | 104 cm |
| Weight | 80 kg |
| Footbar | 4 lockable positions, including flat |
| Spring Bar | Rapid Change spring bar |
| Springs | 5 total: 2 Light, 2 Medium, 1 Strong |
| Rope Adjustment | Combined T-Bar and Pro Rope adjustment system |
| Headrest | 3 adjustable positions |
| Shoulder Rests | Removable and lockable, two width options |
| Wheels | 8 PU wheels |
| Runners | Precision aluminium |
| Feet | Adjustable |
| Maximum User Weight | 150 kg |
| Testing | Independently tested to EN ISO 20957-1:2013 |
What's Included
- M8-Pro Maple Wood Pilates Reformer
- Pro Sitting Box
- Foot Strap
- Rapid Change spring bar
- 5 nickel-plated music wire springs: 2 Light, 2 Medium, 1 Strong
- Adjustable footbar
- 3-position adjustable headrest
- Removable and lockable shoulder rests
- Combined T-Bar and Pro Rope adjustment system
- Silent double-loop handles
- Silent ropes
- Adjustable silent foot strap with fluffy cover
- Removable maple standing platform
- Adjustable feet
- Gondola Pole storage hooks
Ideal For
- Commercial Pilates studios
- Boutique Pilates studios
- Professional Pilates instructors
- Private Pilates training spaces
- Home Pilates studios
- Luxury home gyms
- Studios seeking a natural wood Pilates aesthetic
- Users who want an oversized Reformer carriage
- Studios requiring expandable Reformer accessories
The Align-Pilates M8-Pro Maple Wood Pilates Reformer combines the visual appeal of traditional wooden Pilates equipment with modern Reformer functionality. Its solid North American maple frame, oversized carriage, 104 cm travel, Rapid Change spring bar and combined T-Bar rope adjustment system provide a versatile platform for studio and home Pilates environments.
With the Pro Sitting Box and Foot Strap included, the M8-Pro package provides additional setup options straight out of the box. Its removable standing platform, optional Jump Board compatibility, Half Cadillac compatibility and optional Mattress Converter and Platform Extender make the M8-Pro a flexible foundation for expanding a Pilates training space.
